Aftermarket Radio Infinity Sound System

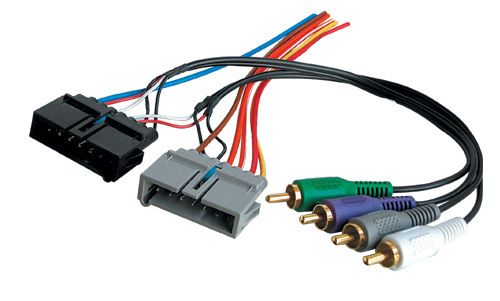

Aftermarket Radio Installation Wire Harness

If you are installing an aftermarket radio in your car you need this harness. This harness will save you time and aggravation. To use it simply unplug your factory radio from the harness in the dash. On the aftermarket radio wire this in by matching up the colors. Our harness meets EIA color codes to take out the guess work. Then simply plug the aftermarket radio back in to the factory plug in the vehicle. No cut wires, if you sell your vehicle simply unplug the aftermarket radio and re-plug in the factory radio.

Works on vehicles that have a premium system with a factory amp.

EIA Color Codes:

• Yellow – 12V Constant

• Red – 12V Accessory

• Black - Ground

• Black with White Stripe - Factory Amplifier Ground

• Blue - Power Antenna / Factory Amplifier Remote Turn On

• Blue with White Stripe - Factory Amplifier Remote Turn on

• Orange – Dash Light Dimmer/Illumination

• Orange with White Stripe - Dash Light Dimmer/Illumination

• Brown - Mute / Not Used

• Green – Left Rear Speaker (+)

• Green with Black Stripe Left Rear Speaker (-)

• White – Left Front Speaker (+)

• White with Black Stripe – Left Front Speaker (-)

• Purple – Right Rear Speaker (+)

• Purple with Black Stripe – Right Rear Speaker (-)

• Gray – Right Front Speaker (+)

• Gray with Black Stripe – Right Front Speaker (-)

• White RCA - Left Front Speaker

• Grey RCA - Right Front Speaker

• Green - Left Rear Speaker

• Purple RCA - Right Rear Speaker

• Red RCA - Right Input

• White RCA - Left Input

• Yellow RCA - Video Input

Vehicle Fitment:

Chrysler

• Cirrus 1995-2000
• Concorde 1993-2001
• E Class 1984-1990
• LHS 1994-2001
• New Yorker 1994-1997
• Sebring 1995-2001

Dodge

• Aries K 1984-1989
• Avenger 1995-2000
• B-Series 1994*
• Caravan 1984-2001*
• Dakota 1987-2001
• Daytona 1984-1994
• Diplomat 1984-1994
• Dynasty 1988-1993
• E Class 1984-1990
• Intrepid 1993-2001
• Neon 1995-2001
• Ram 1994-2001
• Spirit 1989-1995
• Stratus 1995-2006

Plymouth

• Fury 1984-1989*
• Gran Fury 1984-1989
• Neon 1995-2002
• Prowler 1997-2001*

--------------------------------------------------------------------------------------------------------------------
